VA-SOP-LC-004 · Standard operating procedure
Resolving "No peak is detected" — compound identification by retention time in LCsolution
SOP with screenshots: why LCsolution reports 'No peak is detected' when the peak is visible, and how to correct the expected RT and identification window.
| SOP No. | VA-SOP-LC-004 |
|---|---|
| Revision | 00 |
| Effective date | 30 October 2026 |
| Review date | 30 October 2027 |
| Software | Shimadzu LCsolution 1.25 (Postrun Analysis), LC-2010 series HPLC |
1Purpose
To correct compound identification when LCsolution reports "No peak is detected" although the peak is present.
2Scope
Applies to LCsolution 1.2x Compound Table and Identification settings.
3Responsibility
- Analyst — performs the procedure and records results.
- QC reviewer — verifies the output against the acceptance criteria.
- Lab in-charge / system administrator — controls method and report-format files and user rights.
4Definitions and abbreviations
| Expected RT | Retention time entered in the Compound Table for a compound. |
|---|---|
| Identification window | Tolerance (% or min) around the expected RT in which the peak must fall. |
5Prerequisites and materials
- Data file open in LC Data Analysis with the Compound Table visible.
6Safety and precautions
- Work on a copy of data and method files until the change is approved.
- Never delete or overwrite raw data (.lcd) to obtain a passing result; every change must be traceable.
- Follow the laboratory's data-integrity and audit-trail SOP when LCsolution security is enabled.
7Procedure
-
7.1

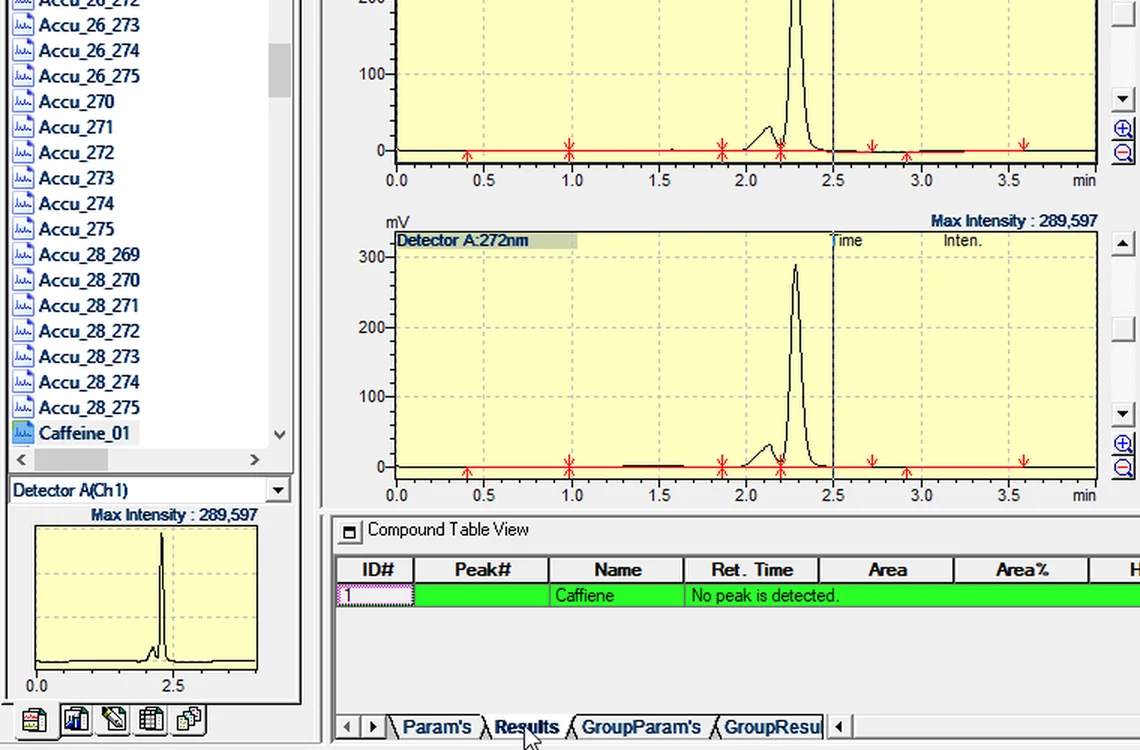

Read the result
Results tab shows the compound with No peak is detected.
Fig. 7.1 — Read the result -
7.2

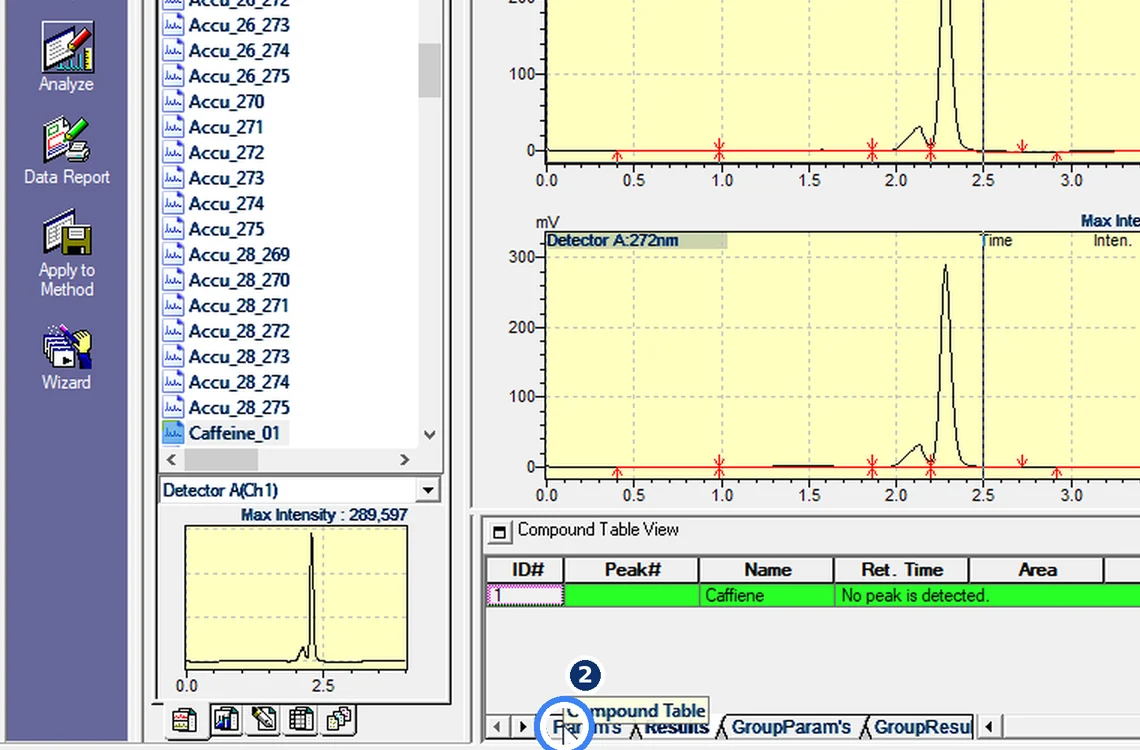

Compare expected and actual RT
Compound Table: expected 2.500 min, actual peak 2.278 min. With a 5 % window LCsolution searches only 2.375–2.625 min.
Fig. 7.2 — Compare expected and actual RT -
7.3

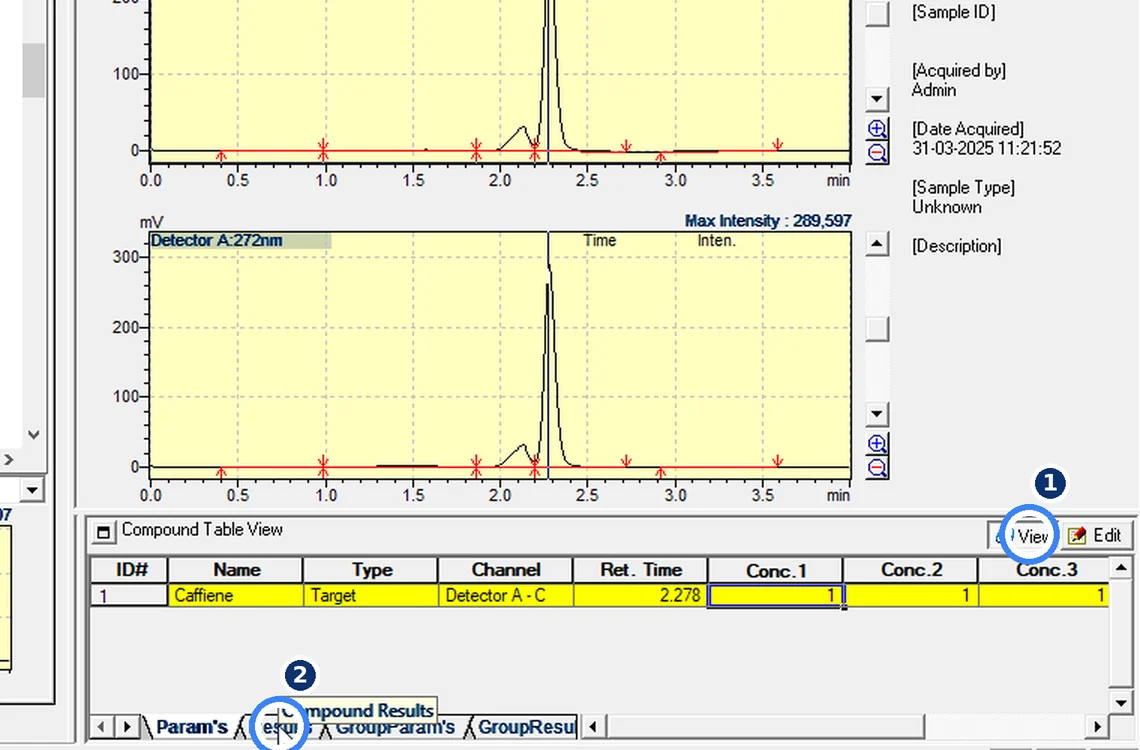

Edit the RT
Click Edit, type the actual RT 2.278, click View, then return to Results.
Fig. 7.3 — Edit the RT -
7.4

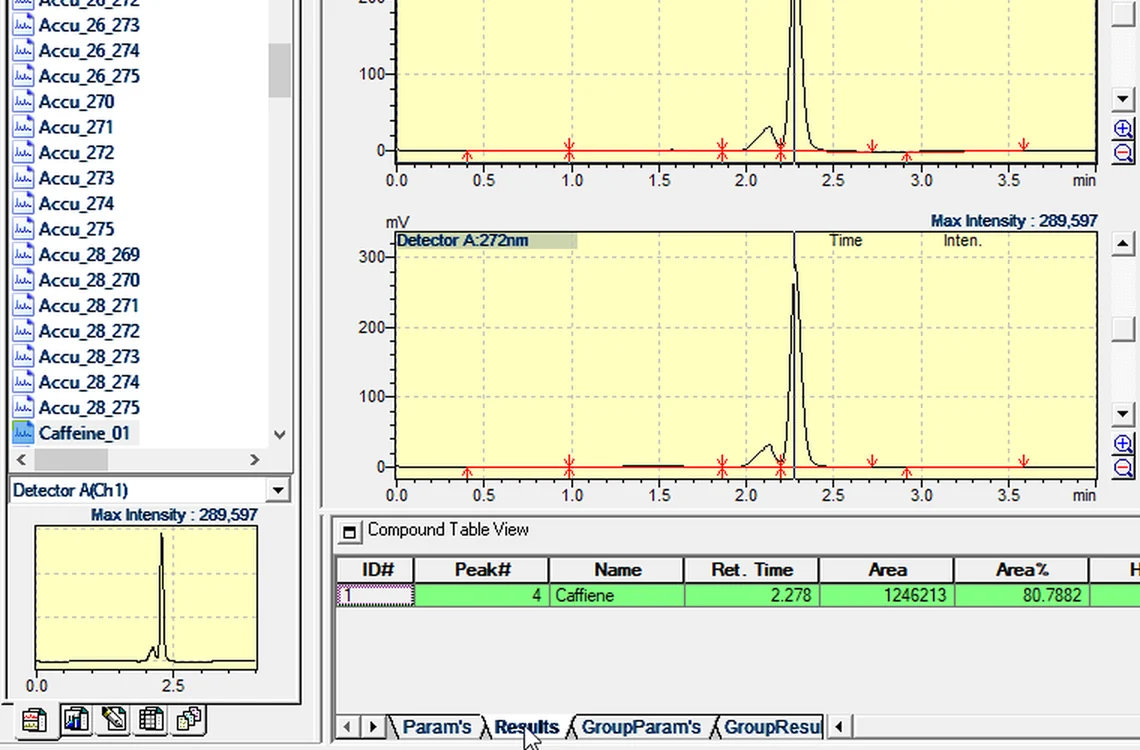

Confirm identification
The compound is identified at 2.278 min.
Fig. 7.4 — Confirm identification -
7.5

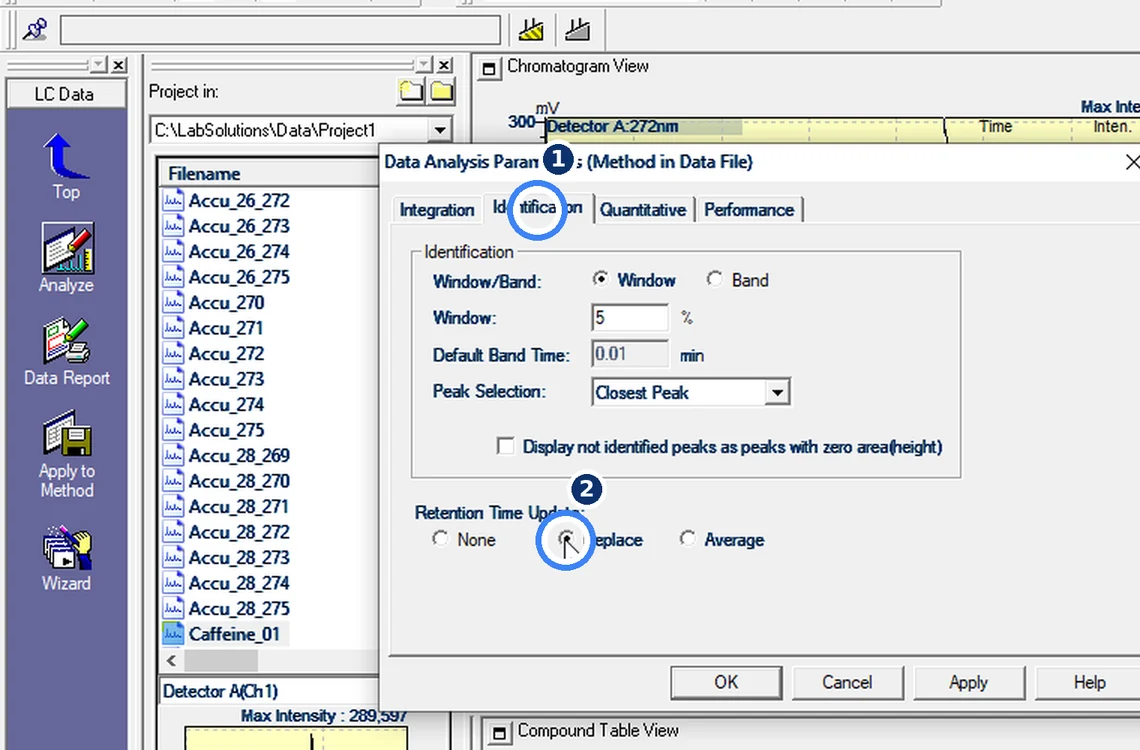

Prevent it
Method → Data Analysis Parameters → Identification: Window 5 %, Retention Time Update = Replace.
Fig. 7.5 — Prevent it -
7.6
Rule
Peak not identified? Check expected RT and window first.
8Acceptance criteria and interpretation
- Compound identified at its actual RT; result table shows the compound name and area.
- Window and RT update setting documented in the method.
9Troubleshooting and common errors
| Symptom | Cause and fix |
|---|---|
| Still not identified | Check the detector channel and that the peak lies inside the window after the edit; check Min. Area is not rejecting it. |
| Identification drifts during a long batch | Set Retention Time Update = Replace so each standard updates the expected RT. |
10References
- Shimadzu LCsolution Ver. 1.2x — Operation and Help documentation.
- USP <621> Chromatography.
- ICH Q2(R2) Validation of Analytical Procedures.
11Revision history
| Rev. | Date | Change |
|---|---|---|
| 00 | 30 October 2026 | First issue, written from the October 2026 screen recording. |
Frequently asked
Why does LCsolution say no peak is detected when I can see the peak?
The peak is outside the identification window around the expected RT. Edit the Compound Table RT to the actual value or widen the window.
