VA-SOP-LC-009 · Standard operating procedure
Creating an HPLC gradient method in LCsolution (Simple Settings and LC Time Program)
SOP with screenshots: create a new LCsolution method — stop time, wavelength, oven, pump mode, flow and a gradient in the LC Time Program — and save it.
| SOP No. | VA-SOP-LC-009 |
|---|---|
| Revision | 00 |
| Effective date | 30 October 2026 |
| Review date | 30 October 2027 |
| Software | Shimadzu LCsolution 1.25 (Postrun Analysis), LC-2010 series HPLC |
1Purpose
To create a new instrument method in LCsolution with a binary low-pressure gradient.
2Scope
Applies to LCsolution 1.2x Instrument Parameters for LC-2010/LC-20 systems.
3Responsibility
- Analyst — performs the procedure and records results.
- QC reviewer — verifies the output against the acceptance criteria.
- Lab in-charge / system administrator — controls method and report-format files and user rights.
5Prerequisites and materials
- Instrument configured in System Configuration.
- Method details from the validated procedure (flow, wavelength, gradient, oven).
6Safety and precautions
- Work on a copy of data and method files until the change is approved.
- Never delete or overwrite raw data (.lcd) to obtain a passing result; every change must be traceable.
- Follow the laboratory's data-integrity and audit-trail SOP when LCsolution security is enabled.
7Procedure
-
7.1
New method file
File → New Method File (answer No to saving the old one if not needed).

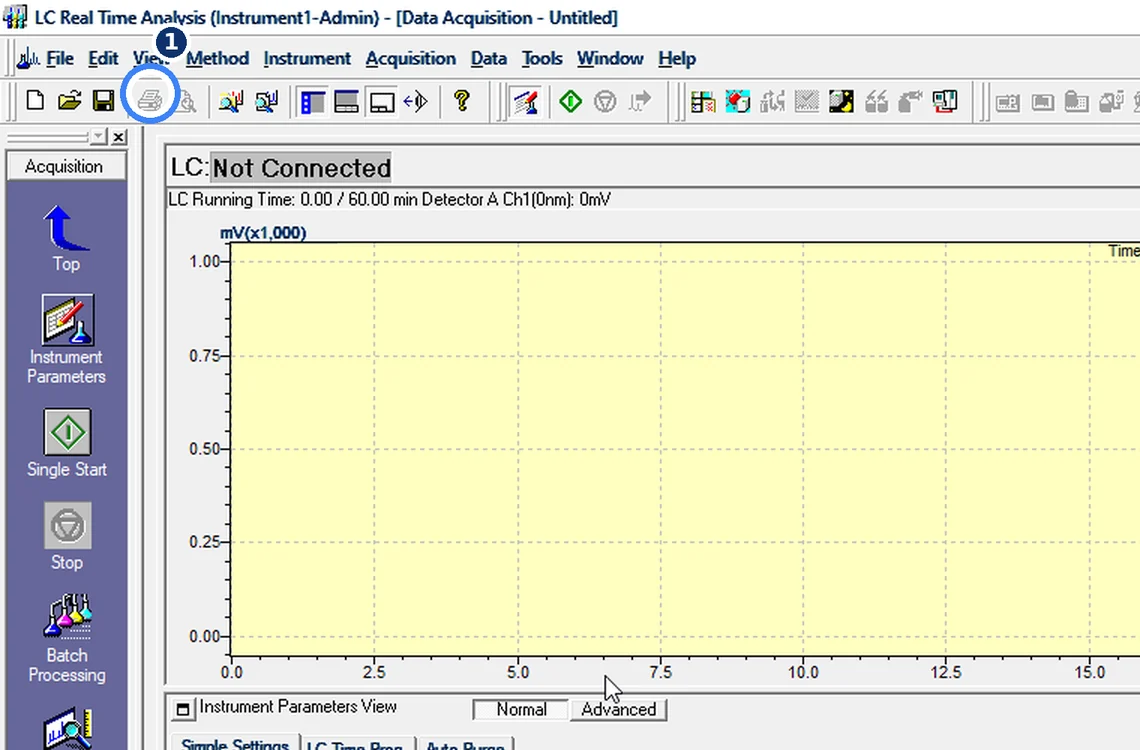

Fig. 7.1 — New method file -
7.2
Simple Settings
Stop Time 10 min, Detector A 272 nm, End Time 10, Oven 30 °C.

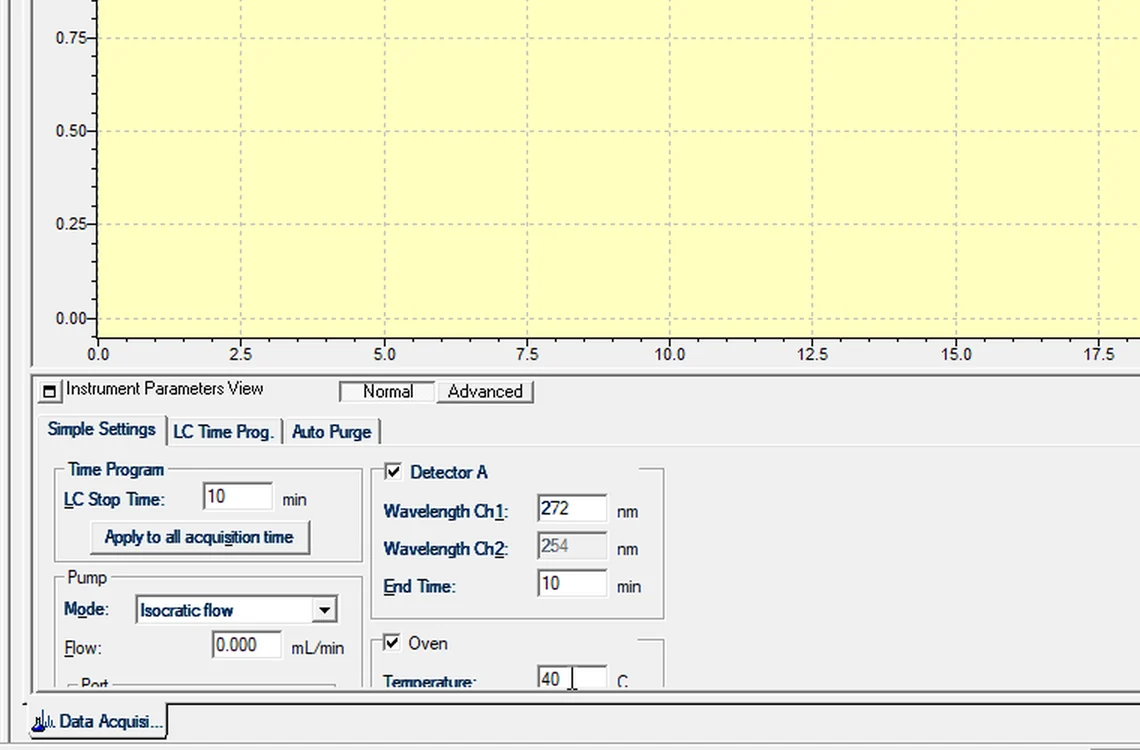

Fig. 7.2 — Simple Settings -
7.3
Pump
Mode Low pressure gradient, Total flow 1.0 mL/min, Pump B 10 %.

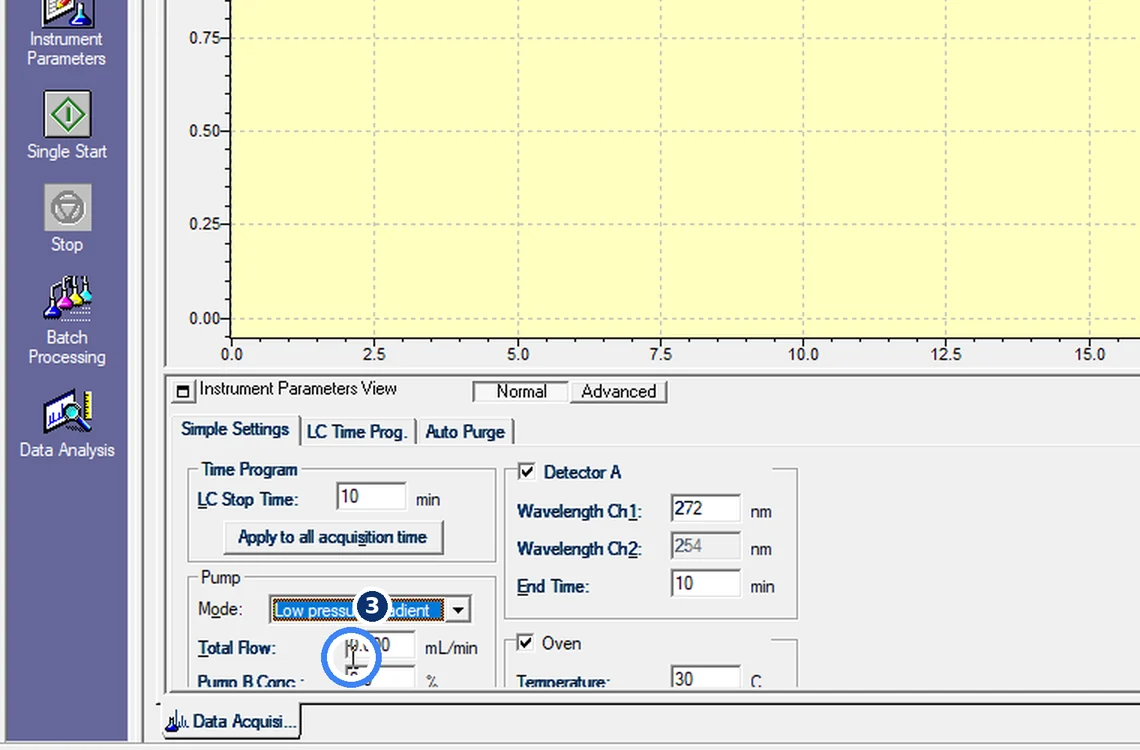

Fig. 7.3 — Pump -
7.4
Time Program row 1
LC Time Program: 6.00 min · Pumps · Pump B Conc. · 90.

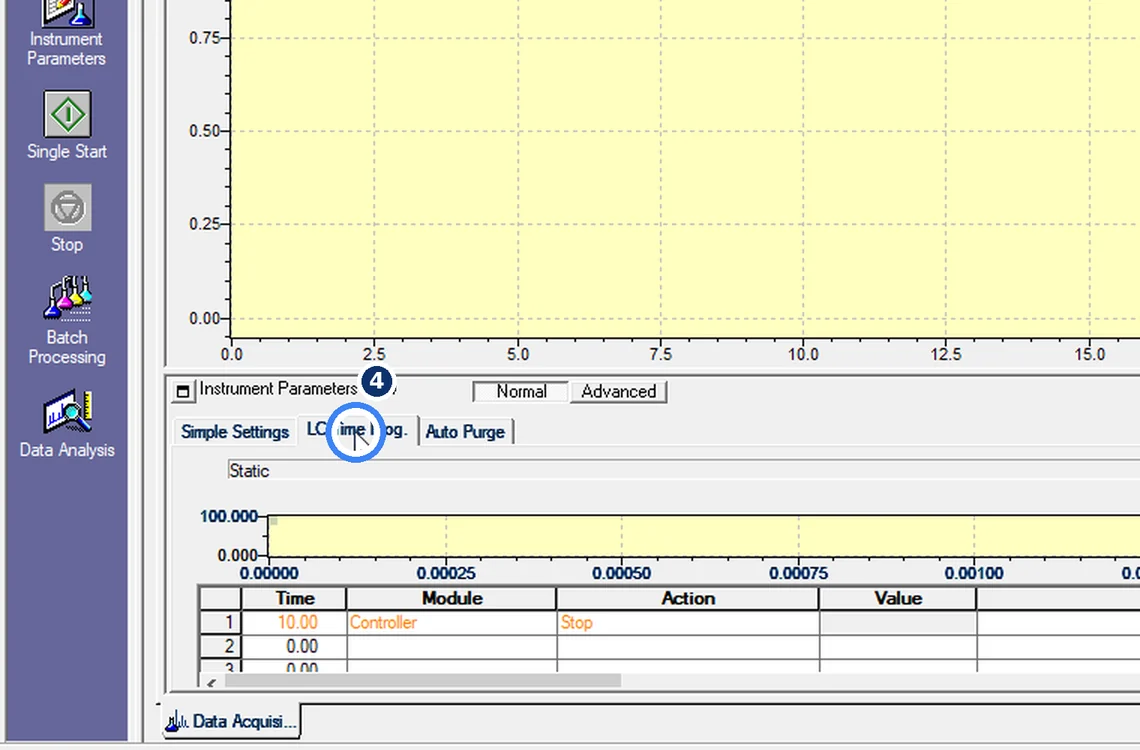

Fig. 7.4 — Time Program row 1 -
7.5
Hold and return
8.00 → 90 (hold) and 8.01 → 10 (re-equilibrate).

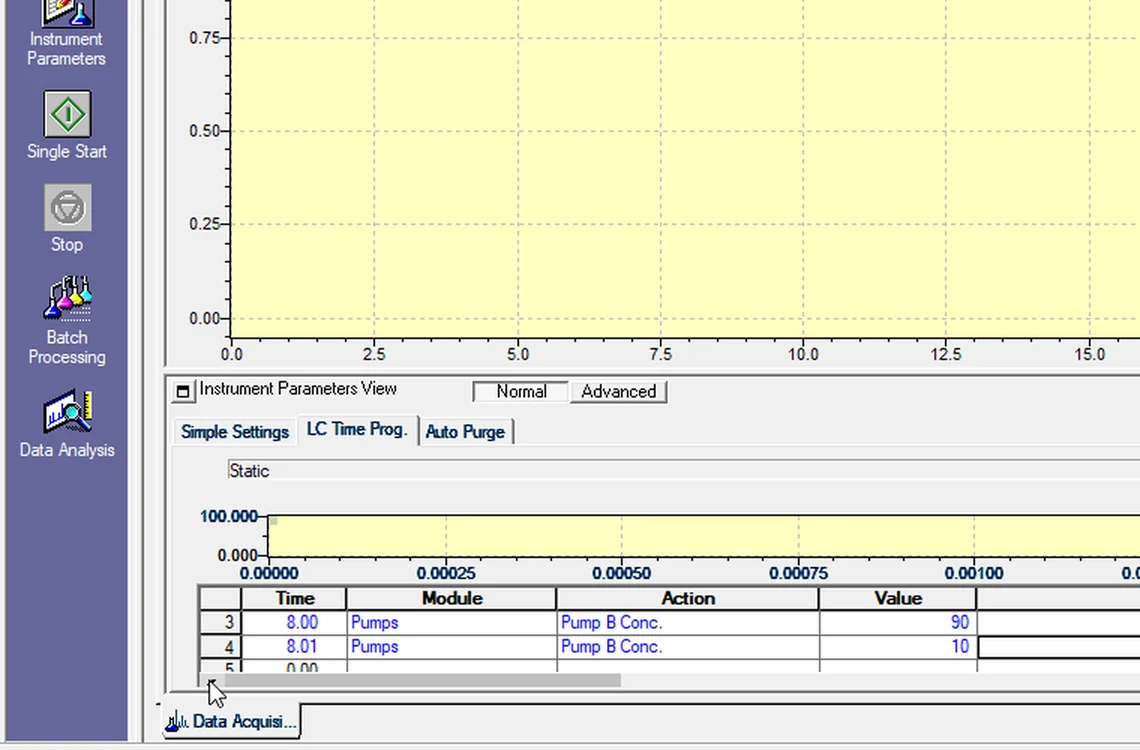

Fig. 7.5 — Hold and return -
7.6
Draw Curve
Click Draw Curve and check the profile before running.

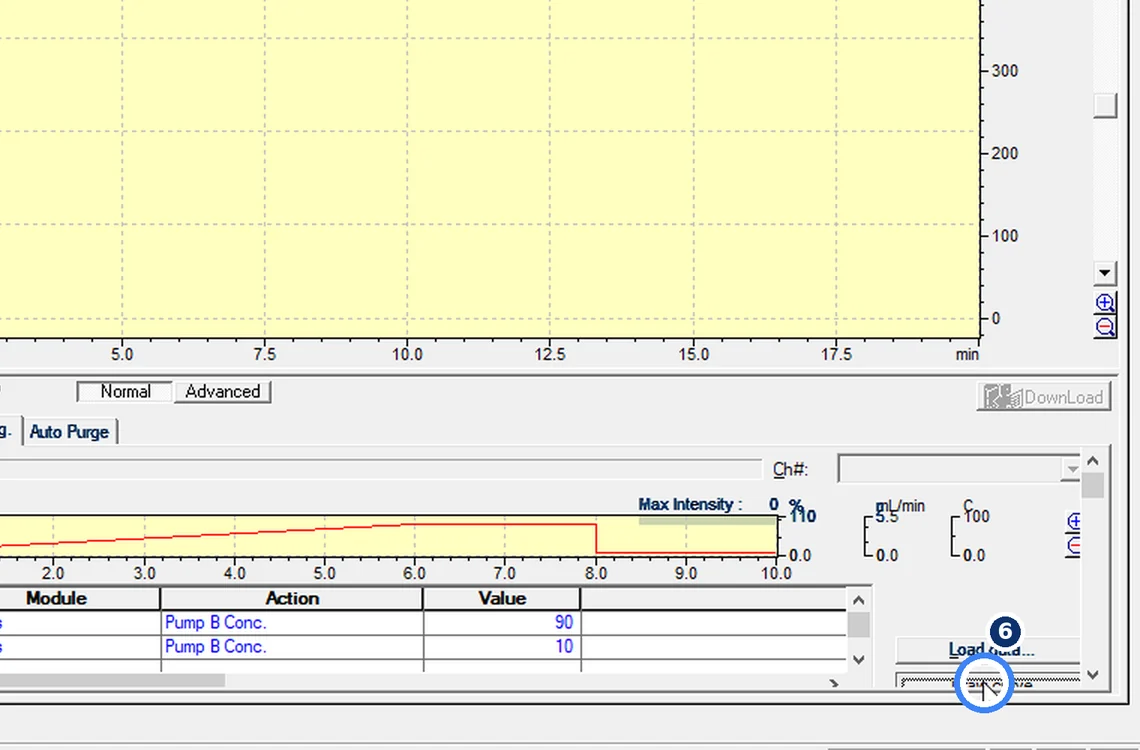

Fig. 7.6 — Draw Curve -
7.7
Save
File → Save Method File As → VA_Caffeine_Gradient.lcm.

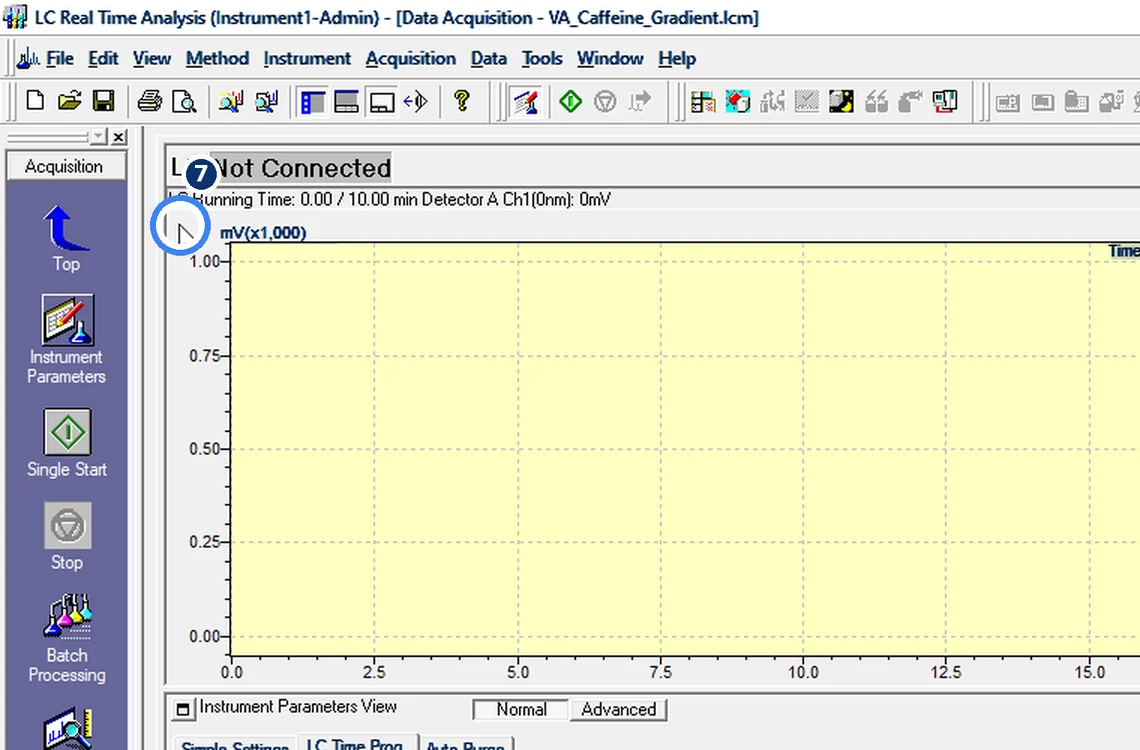

Fig. 7.7 — Save
8Acceptance criteria and interpretation
- Draw Curve shows the intended profile: 10 % B to 90 % B at 6 min, hold to 8 min, back to 10 % at 8.01 min.
- Method saved with a controlled name and opened without hardware warnings.
9Troubleshooting and common errors
| Symptom | Cause and fix |
|---|---|
| Gradient not applied | Pump mode left on Isocratic. Set Low/High Pressure Gradient before the Time Program. |
| Pressure alarm at start | Check Pmax/Pmin limits and degassing before the first injection. |
10References
- Shimadzu LCsolution Ver. 1.2x — Operation and Help documentation.
- USP <621> Chromatography.
- ICH Q2(R2) Validation of Analytical Procedures.
11Revision history
| Rev. | Date | Change |
|---|---|---|
| 00 | 30 October 2026 | First issue, written from the October 2026 screen recording. |
