VA-SOP-LC-012 · Standard operating procedure
Overlaying chromatograms with Data Comparison in LCsolution
SOP with screenshots: overlay several LCsolution data files in Data Comparison, zoom, show or hide files, and use it for linearity and RSD checks.
| SOP No. | VA-SOP-LC-012 |
|---|---|
| Revision | 00 |
| Effective date | 30 October 2026 |
| Review date | 30 October 2027 |
| Software | Shimadzu LCsolution 1.25 (Postrun Analysis), LC-2010 series HPLC |
1Purpose
To overlay several data files in one view for visual comparison of retention time, shape and response.
2Scope
Applies to LCsolution 1.2x Postrun → Data Comparison.
3Responsibility
- Analyst — performs the procedure and records results.
- QC reviewer — verifies the output against the acceptance criteria.
- Lab in-charge / system administrator — controls method and report-format files and user rights.
5Prerequisites and materials
- Data files to compare (e.g. five linearity levels).
6Safety and precautions
- Work on a copy of data and method files until the change is approved.
- Never delete or overwrite raw data (.lcd) to obtain a passing result; every change must be traceable.
- Follow the laboratory's data-integrity and audit-trail SOP when LCsolution security is enabled.
7Procedure
-

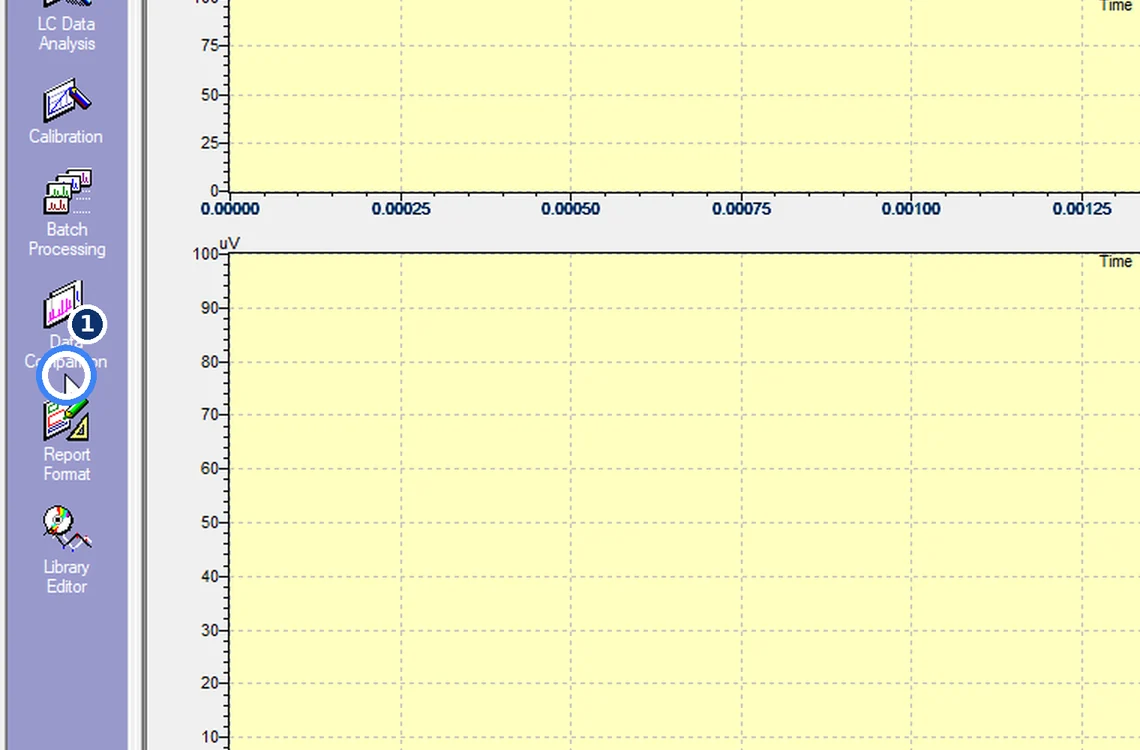

7.1
Open Data Comparison
Postrun → Data Comparison.
Fig. 7.1 — Open Data Comparison -

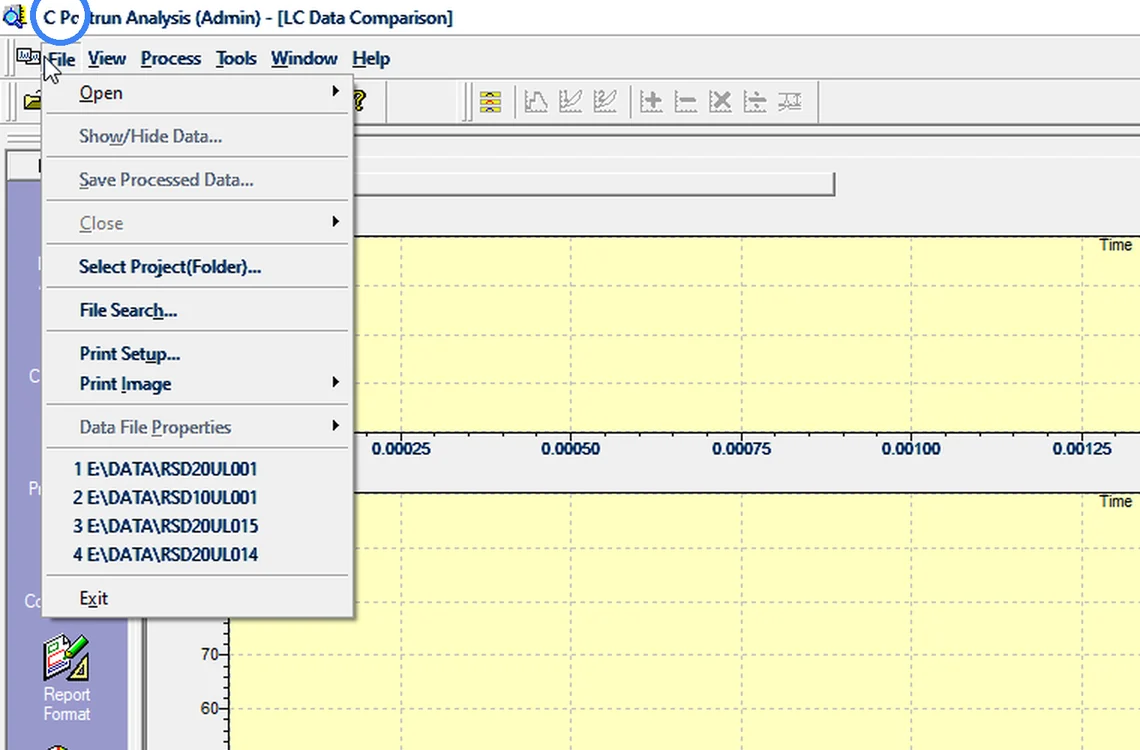

7.2
Add data files
File → Open → Add Data File → select all five linearity levels.
Fig. 7.2 — Add data files -

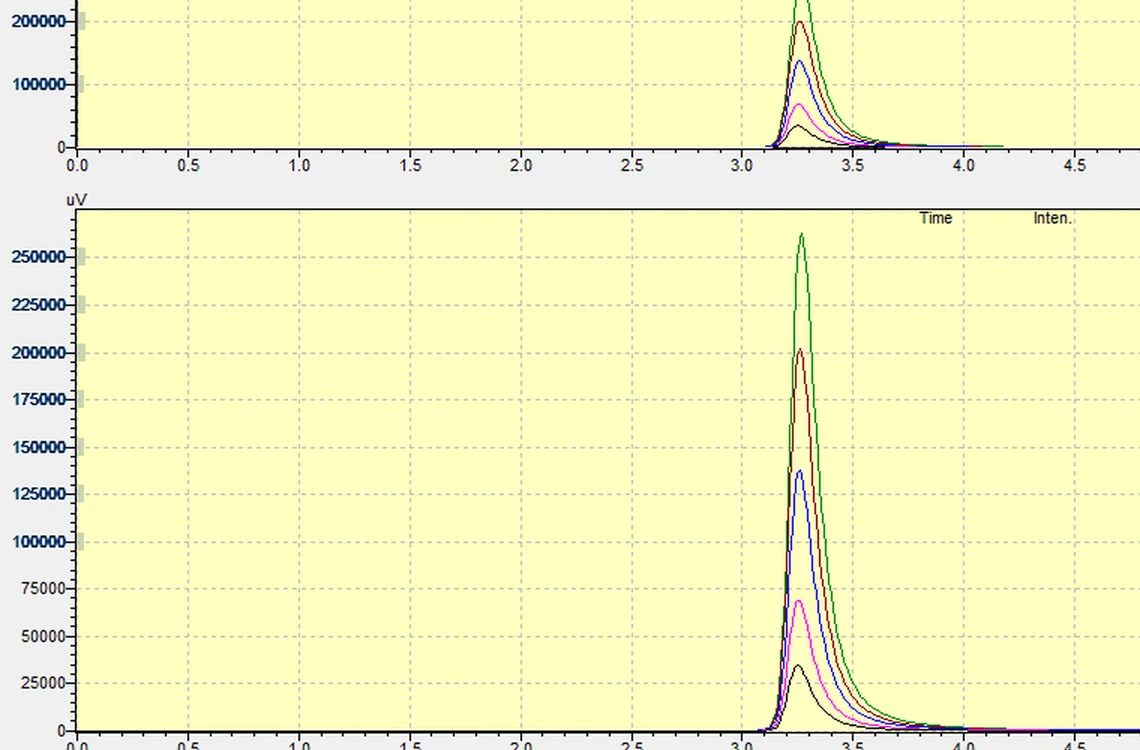

7.3
Overlay
The five levels overlay; the peak grows with concentration.
Fig. 7.3 — Overlay -

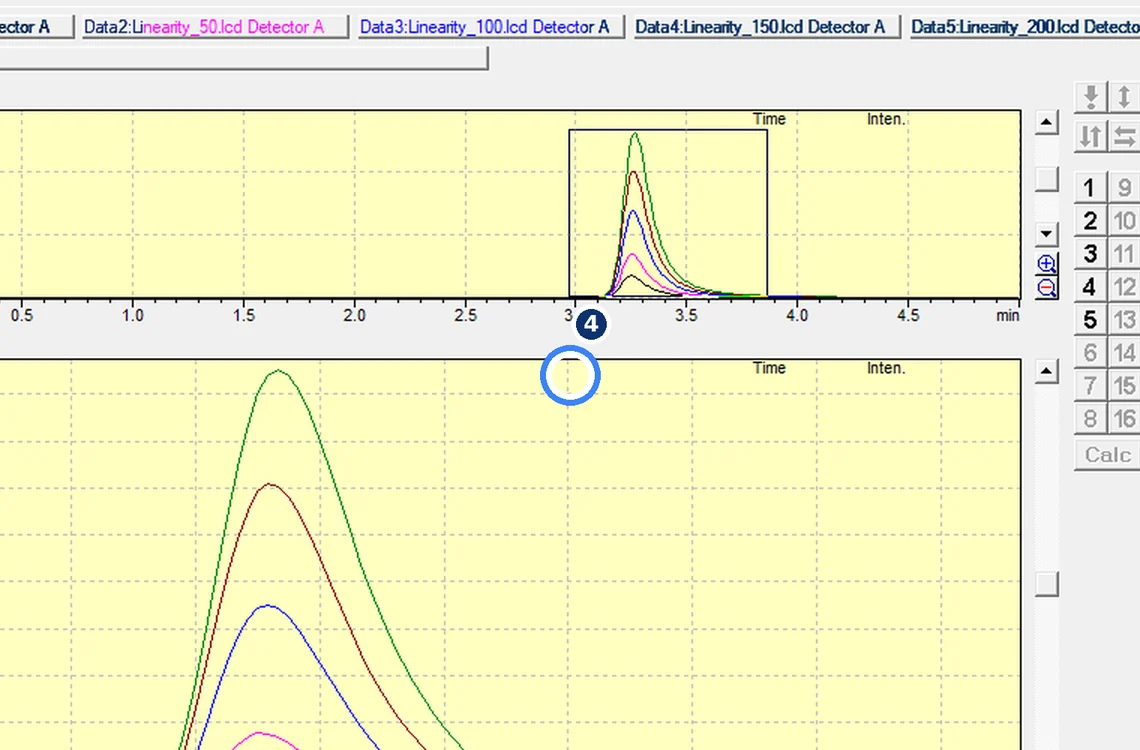

7.4
Zoom
Drag a box over 3.0–3.9 min: same RT 3.25 min at every level, same shape, tailing visible.
Fig. 7.4 — Zoom -

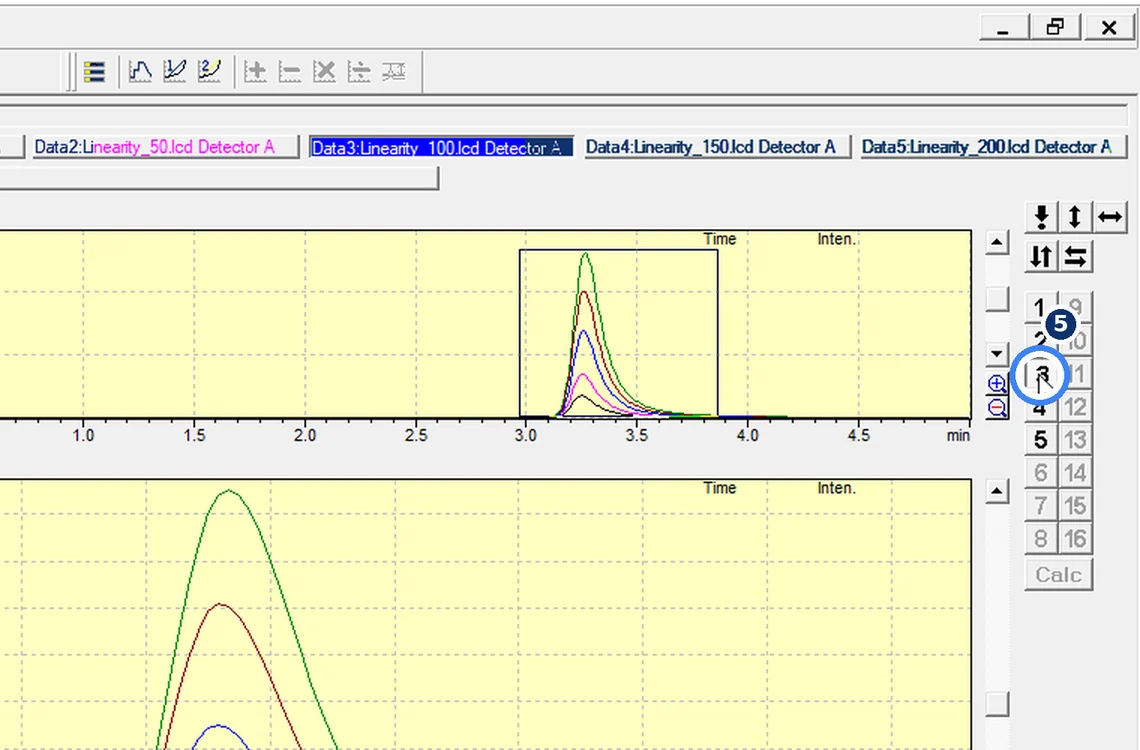

7.5
Show / hide files
The number buttons show or hide each file.
Fig. 7.5 — Show / hide files -
7.6
Use it for
Linearity, RSD and before/after maintenance checks.
8Acceptance criteria and interpretation
- All selected files overlaid; RT and peak shape consistent across files (e.g. RT 3.25 min at every level).
9Troubleshooting and common errors
| Symptom | Cause and fix |
|---|---|
| Files hidden | Use the numbered buttons to show/hide each file. |
10References
- Shimadzu LCsolution Ver. 1.2x — Operation and Help documentation.
- USP <621> Chromatography.
- ICH Q2(R2) Validation of Analytical Procedures.
11Revision history
| Rev. | Date | Change |
|---|---|---|
| 00 | 30 October 2026 | First issue, written from the October 2026 screen recording. |
Frequently asked
How do I overlay chromatograms in LCsolution?
Postrun → Data Comparison → File → Open → Add Data File, select the files, then drag a box to zoom.
